Product Code: 0500-06020
The Hochiki HE Series Strobe
STANDARDFEATURES
• Nominal Voltage 12VDC and 24VDC
• 24VDC Units Have Field Selectable Candela Options of 15,30, 60, 75, and 110 Candela
• 12VDC Units Have Field Selectable Candela Options of 15,30, 60, and 75 Candela
• Unit Dimensions: 5″ high x 4.5″ wide x2.5″ Deep
• Synchronize Strobe with Hochiki Series Control Module(12VDC product must use the HAVSM Module)
• Prewire Entire System, then Install Signals
• Lower Installation and Operating Costs
• Input Terminals Supports 12 to 18 Gauge Wire
• Surface Mount with the HSB (Hochiki surface mount box)
• Silence Horn While Strobes Remain Flashing
• Wide Voltage Range 8-17.5VDC (12VDC units) 16-33VDC orFWR (24VDC units)
• Faceplate Available in Red or Off-White

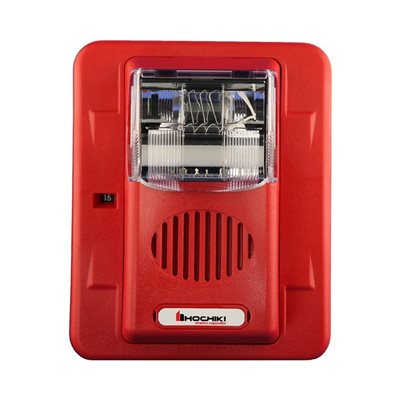

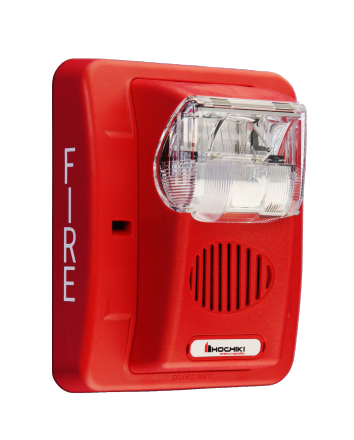

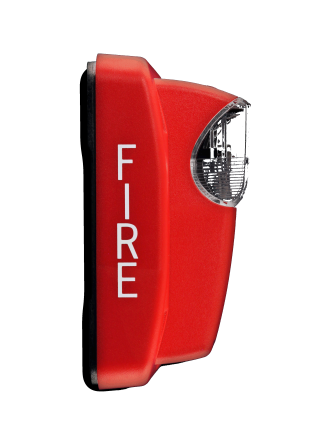

The HE Series is a low profile strobe and horn/strobe
combination that offers dependable audible and visual
alarms and the lowest current available.
The HE Series 24VDC offers tamperproof field selectable candela options of 15, 30, 60, 75, and 110 candela.
The 12VDC models offers tamperproof field selectable
candela options of 15, 30, 60, and 75 candela. The HE
Series horn offers a continuous or synchable temporal
three in 2400Hz and mechanical tone, a chime and
whoop tone. All tones are easy for the professional to
change in the field by using switches.
The HE Series has a minimal operation current and has
a minimum flash rate of 1Hz regardless of input
voltage.
The HE Series is shipped with the standard 4″ metal
mounting plate which incorporates the popular Slide
feature that allows the installer to easily test for supervision. The product also features a locking mechanism
which secures the product to the bracket without any
screws showing.
The HE Series appliances are UL 464 and UL 1971
listed for use with fire protective systems and are
warranted for three years from date of purchase.
